Adroit Achieves DIN Verification for Real-Time Vibration Sensor
Adroit is excited to announce that its real-time vibration sensor has now been verified against DIN 4150-3, a standard that measures the mechanical oscillation of solid bodies with the potential to cause discomfort to people or damage to structures.
This verification confirms that the sensor is the most advanced, yet most affordable unit available for sale anywhere in Australasia.
Ulrich Frerk, Technology Lead at Adroit says the vibration sensor development came about when Adroit was looking to expand its worksite monitoring portfolio, but found existing products and processes were expensive and inconvenient.
“We looked at the market and found that while there were a number of very expensive proprietary vibration solutions available, many were not internet-connected, and some could only operate with the support of a consultant.
“So, we saw the opportunity to develop a real-time, cloud-connected vibration sensor for New Zealand using low-cost MEMS technology, that could put the vibration data in the hands of the onsite workers or stakeholders that need it most,” he said.
The current method for vibration testing for construction is a piezometer – but these units require lots of calibration, normally 6-monthly or yearly and they're affected by a number of different factors. Whereas a MEMS (micro-electromechanical system) sensor is a form of accelerometer with both mechanical and electronic components, that produces the same data, but in real-time, with a factory stable calibration hold of 5-plus years.
“Basically what we've done is we've created a reliable MEMS-based vibration sensor that is robust, compact and easily deployed - at half the price or less than other competing systems,” Frerk says.
“It is compatible with the entire Adroit ecosystem of devices and able to be connected by cellular or Iridium satellite to the cloud where data can be viewed or downloaded to support construction activity,” he says.
Basically what we've done is we've created a reliable MEMS-based vibration sensor that is robust, compact and easily deployed - at half the price or less than other competing systems
Gaining verification to the DIN standard for the new sensor was an important step as this means the data can be used to verify that businesses are operating within strict resource consent guidelines.
The verification process requires Adroit’s New Zealand-made sensors to be shipped to Australia for testing in a specialist laboratory at a certain speed and frequency of vibration to ensure the sensor produces the correct outcome and an accurate outcome.
Accuracy is important, especially when working near residential or heritage areas, where vibration greater than 5 millimetres per second could cause irreparable damage to a structure and any exceedance of this limit would require a costly shut-down of operations. Activity such as sheet piling, drilling or concrete breaking has the potential to cause this level of vibration or greater.
Frerk says working with an analog sensor or one that isn’t sending data in real-time exposes the contractor to complaints, or in the worst cases, prosecution or remediation of damage. “But the benefit we get from real-time data is that we can see it plotted on a chart throughout the day,” Frerk says.
“If you see or get alerted at some point in time that activity is going beyond the thresholds that you defined, you can immediately act to either lessen that activity or at least identify the source.
“And because it is reporting vibration data in real-time, these sensors can be paired with other sensors or databases reporting site activity, or onsite cameras for visual recognition - to help stakeholders understand what actions caused onsite vibration hazard and to take actions to mitigate or remediate,” he says.
The new Adroit Vibration Sensor can be purchased as a complete solution in Adroit’s Portable Monitoring Kit (PMK) , or it can be used as a standalone sensor product and installed on any site. Adroit is also making the unit available to other IoT specialist firms that want to provision them into their own IoT controller or cloud platform system.

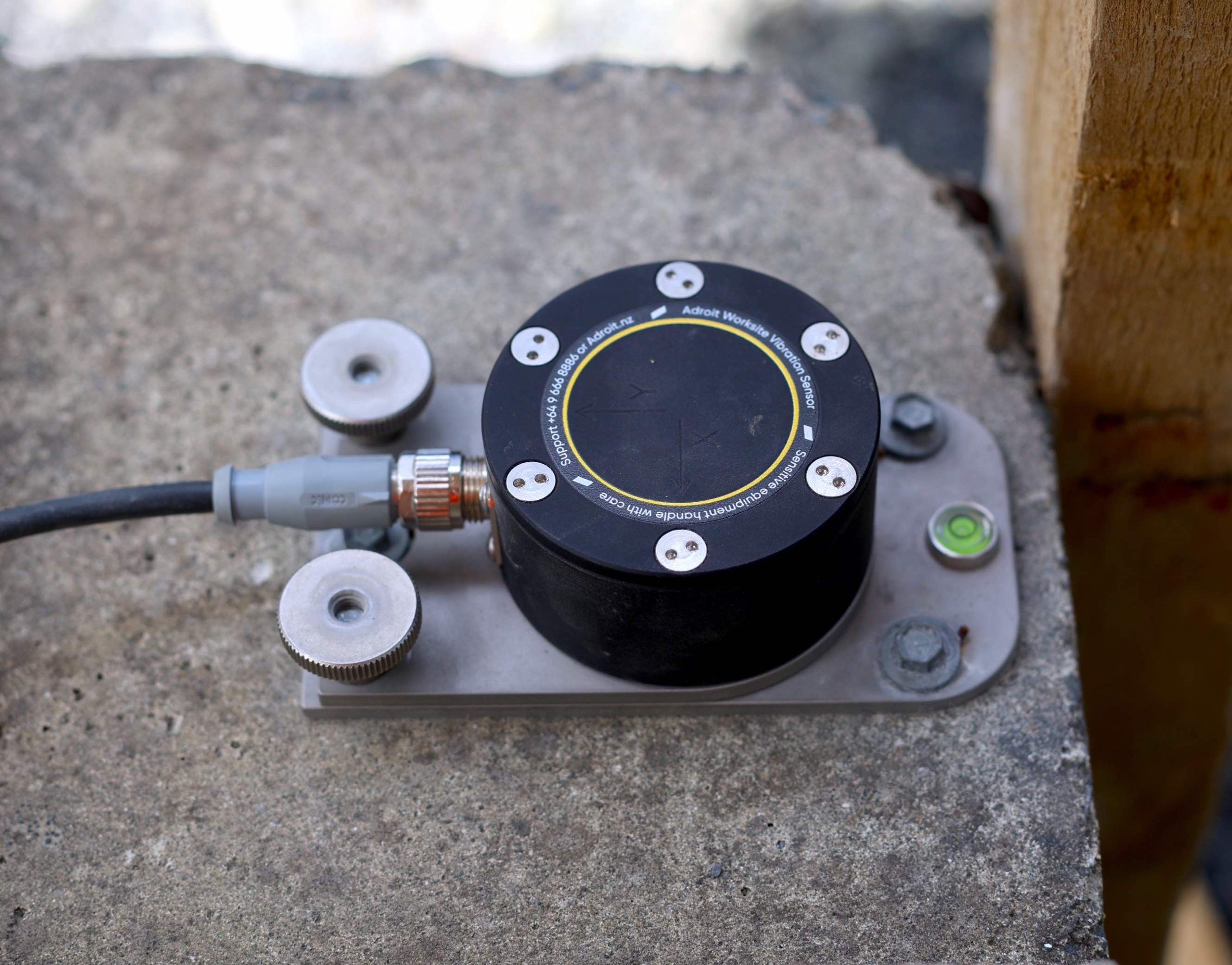

The Adroit design team also took into account how customers might use the sensor – and that they might have multiple locations they need to move the sensor around on. So, they’ve devised a clever quick-release connector that removes the sensor but leaves the baseplate in its location.
“So this is for easy movement around the site,” Frerk says. “You can have these plates in different locations, but bring the sensor in and store it inside overnight or when not in use.
“And another aspect is that the whole unit is made here. All the parts are machined locally. The sensor itself is super strong anodised aluminium, fully potted to exclude water, moisture, or corrosive agents, and with stainless steel fixing plates and stainless steel screws for durability,” he says.
The Adroit Vibration Sensor is in stock and ready to be deployed immediately on worksites throughout the country.
